WIG/WISE Projects

In all relevant projects Supramar provides the consultancy based on its grooves technology , which helps bringing the craft out of the water at takeoff or back again in landing manouvres.

For this Supramar designs and tests the complete hydrofoil concepts needed and going well above the classic limit speed of hydrofoils of 40 to 60 kts.

Design study specifications:

Displacement

600 T.

Payload (800 Passengers+100 Cars)

200 T.

Range

650 km

Speed

200 kts

Installed Power



cruise

 4x11 MW turboprops

manouvring in harbour

2x0.5 MW waterjets

Total

45 MW

Dimensions



overall Length

110 m

Width in harbour

50 m

Width WISE fligth

100 m

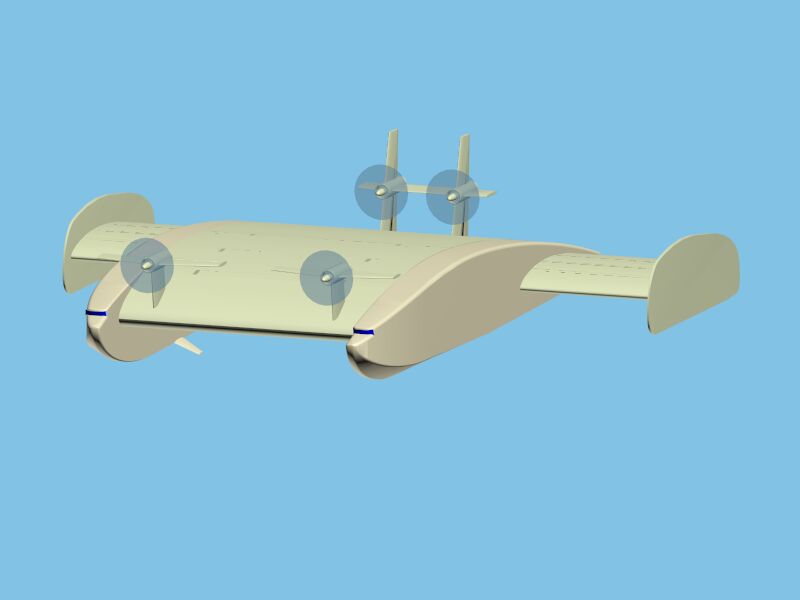

Design study Supramar

For takeoff-sequence illustration click: SUPRAMAR_WISE_2000
